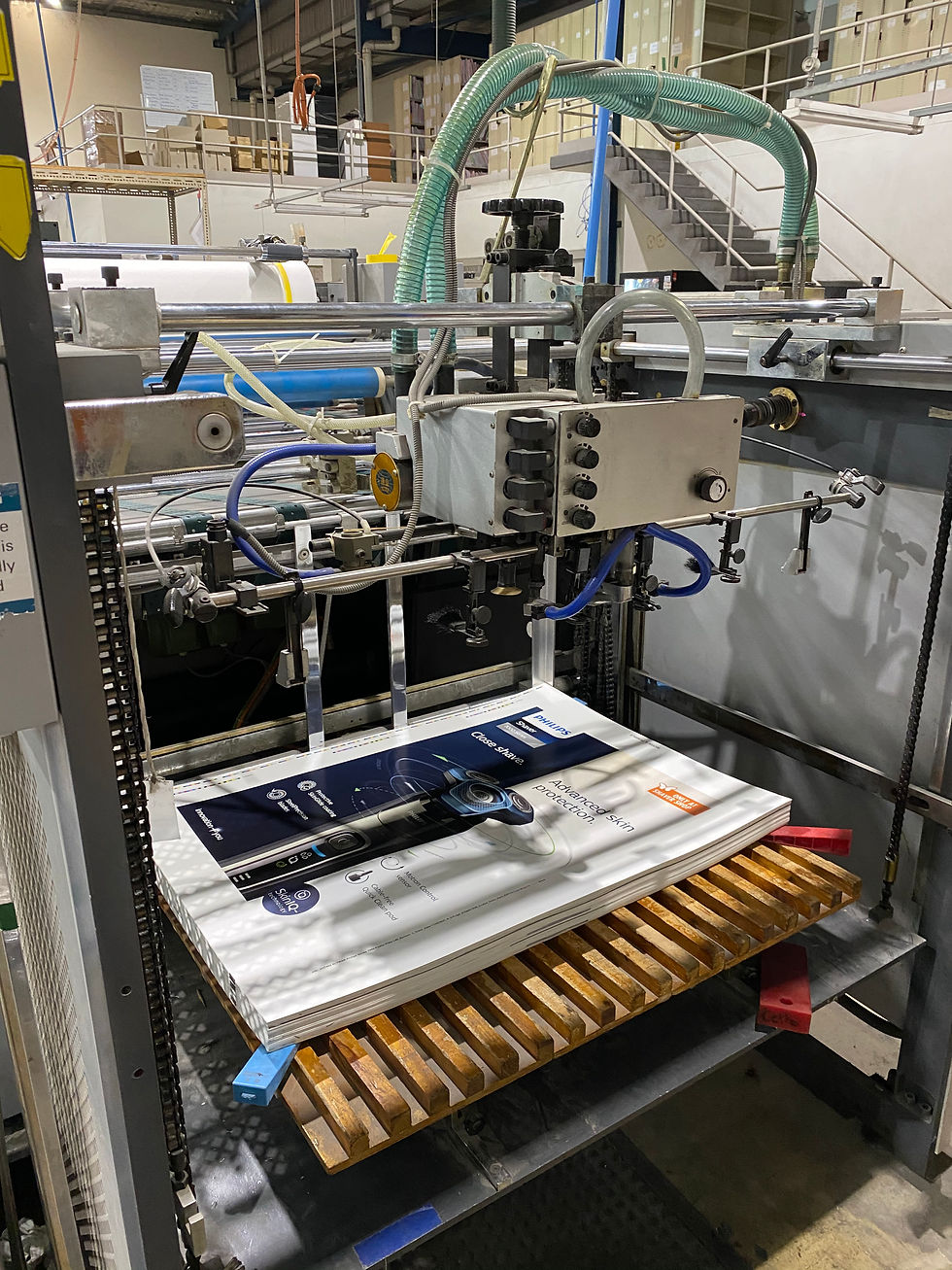

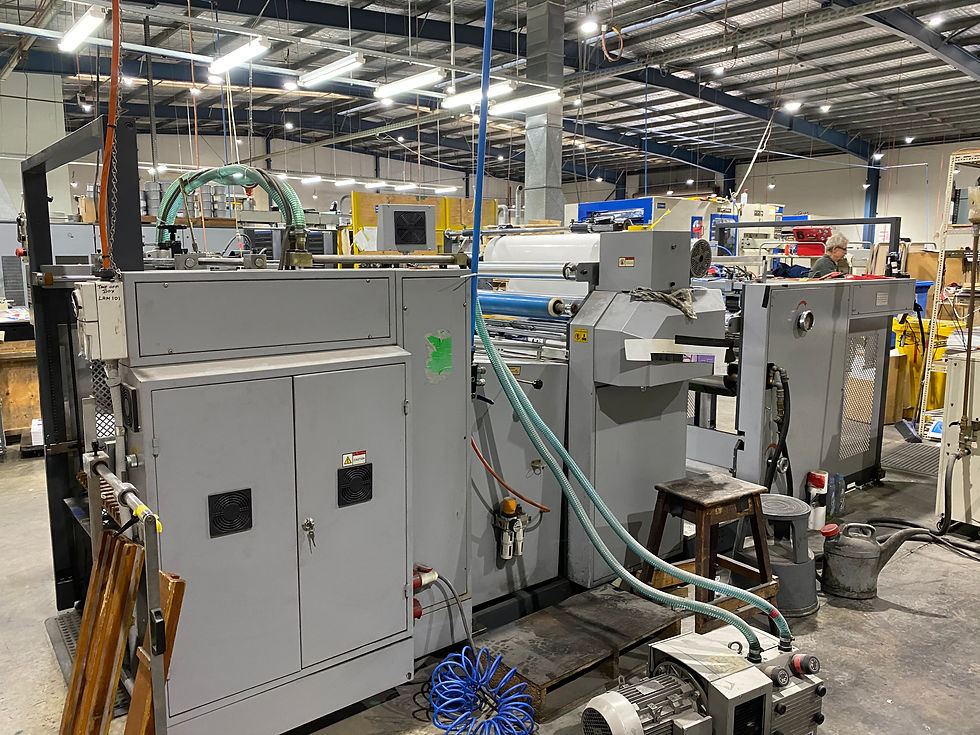

BP Thermal Laminator SGFM-1100

BP Thermal Laminator
Model : BP Thermal 1100 (SGFM -1100)
Year : June 2009

Description

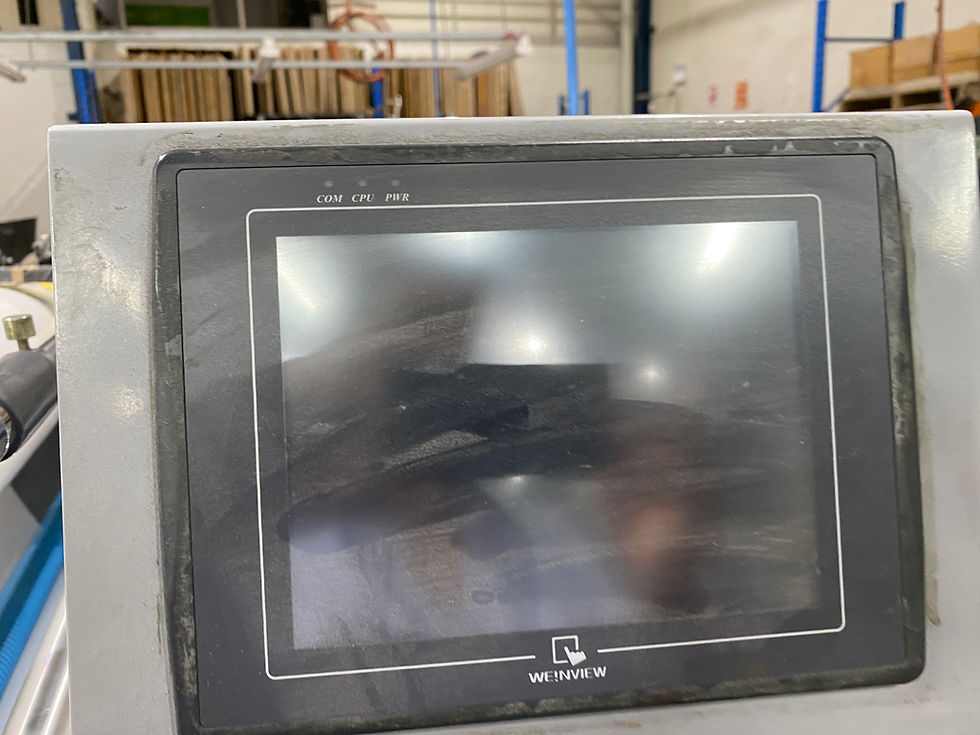

The SGFM-1100 is engineered for high-volume efficiency, automating the entire process from paper feeding to lamination, cutting, and stacking . It is equipped with an oil-heated roller system for even, precise temperature control, an automatic pneumatic cutting system, and a PLC touch-screen interface . It handles single-sided, double-sided, and thermal BOPP or PET films, preventing common defects like bubbling or curling. [1, 2, 3, 4]

Specification
Maximum Paper Size: 1100 × 1200 mm
Minimum Paper Size: 300 × 300 mm
Paper Thickness: 100 to 500 gsm
Maximum Laminating Speed: Up to 50 m/min
Total Power: ≈ 30 kW
Heating System: Built-in oil heating system
Dimensions: ≈ 9000 × 2260 × 1900 mm
Machine Weight: ≈ 5000 kg (approx. 5 tonnes)

Price : AUD 12,000.00
